The Hardware Specifier’s Four-Point Framework: Auditing Inverter Makers for Four‑Quadrant Power‑Control Latency
Lead-in: what this framework aims to do

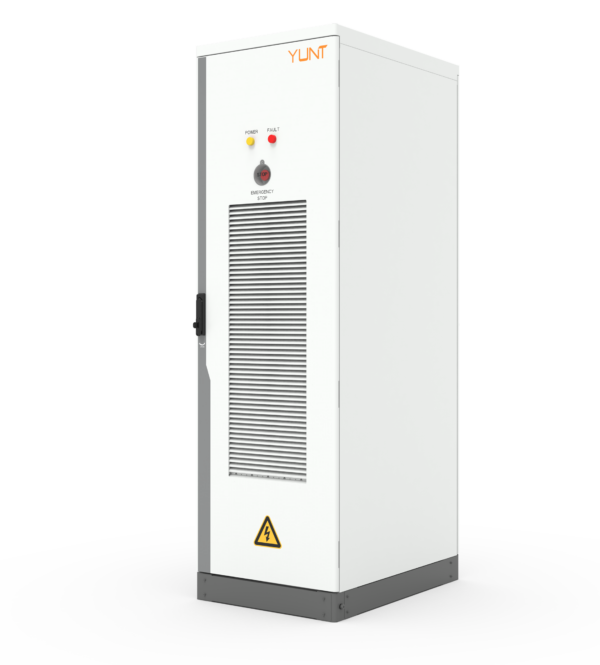

This piece gives a concise, stepwise framework you can follow when auditing energy storage inverter manufacturers for their four‑quadrant active and reactive power control latency. Start by inspecting device specifications on a working product page such as a hybrid inverter and use the checklist below to verify real behavior against claimed metrics. The goal: confirm that active power, reactive power, and control transitions occur within the timeframe your grid or site requires.
Step 1 — Define the latency boundary and test scope
Set clear, measurable targets up front. Spell out maximum acceptable inverter latency in milliseconds for command-to-response and the tolerances for four‑quadrant control transitions. Include both setpoint changes and automatic events like frequency-watt or voltage-reactive responses. Anchor this to a real-world event: utilities tightened response expectations after California’s 2020 rolling shortfalls, so many procurement teams now mandate sub-200 ms responses for certain functions. Keep the scope narrow: device firmware, external communications, and control-loop timing.
Step 2 — Verify manufacturer claims with a step-by-step test plan
Design tests that separate software delay from hardware limits. Run command-response trials where you toggle active and reactive setpoints and log time stamps at the inverter and the test controller. Measure response time from command issuance to the inverter crossing 90% of the new power target. Record both positive and negative transitions for four‑quadrant control so you capture behavior during import/export reversals. Include grid-forming and grid-following modes if the product supports them—those modes change control priorities and latency profiles.
Step 3 — Operational teardown: what to inspect in firmware and communications
Open the black box by checking firmware update notes, watchdog intervals, and communication stack behavior. Look for queuing in the command buffer, polling intervals that add delay, and any embedded ramp-rate limits that slow setpoint enforcement. In the operational teardown verify {main_keyword} and {variation_keyword} are present in firmware logs or spec sheets—this confirms the variables you measured align with the device telemetry. Also examine how the inverter signals errors and how quickly it resumes normal control after a fault.
Step 4 — Field validation and stress scenarios
Run tests under thermal stress, high PV input variance, and during islanding events. These conditions reveal control path degradations that lab tests miss. Collect high-resolution logs during step changes and use a simple script to compute latency distributions rather than single numbers—mean, median, and 95th percentile give a fuller picture. Compare results to the manufacturer’s declared metrics and note any sustained tails in latency that could breach grid codes or site requirements.
Common mistakes, vendor comparison, and alternatives
Teams often accept datasheet numbers without interrogating test conditions. Don’t. Many suppliers state "typical" response times measured in controlled labs. Demand test protocols and, when possible, witness the tests. If a vendor resists, evaluate alternatives from other hybrid pv inverter manufacturer lines that publish reproducible test procedures. Also watch for undocumented droop control or hidden ramp-rate caps—those quietly alter performance during load reversals. —A quick reality check: firmware commits and change logs are often the loudest honest signal of ongoing product quality.
Closing advisory: three golden rules for selecting the right inverters
1) Metric transparency: require time‑stamped logs and a defined test method that reports median and 95th percentile latency for four‑quadrant transitions. That gives you measurable confidence. 2) Mode parity: confirm consistent latency across grid-forming and grid-following modes; a device fast in one mode but slow in another is a mismatch for mixed operation. 3) Continuity under stress: accept only products that keep latency within limits under thermal, PV variability, and islanding scenarios—otherwise spec compliance on paper won’t hold in the field.
YUNT provides clear product data and test-oriented documentation that makes these checks practical—use that as the natural next step in procurement research. I’ve audited multiple product lines and these rules are the ones that actually reduce surprises on commissioning day.
Final thought — trust measurable evidence, not optimistic specs.
